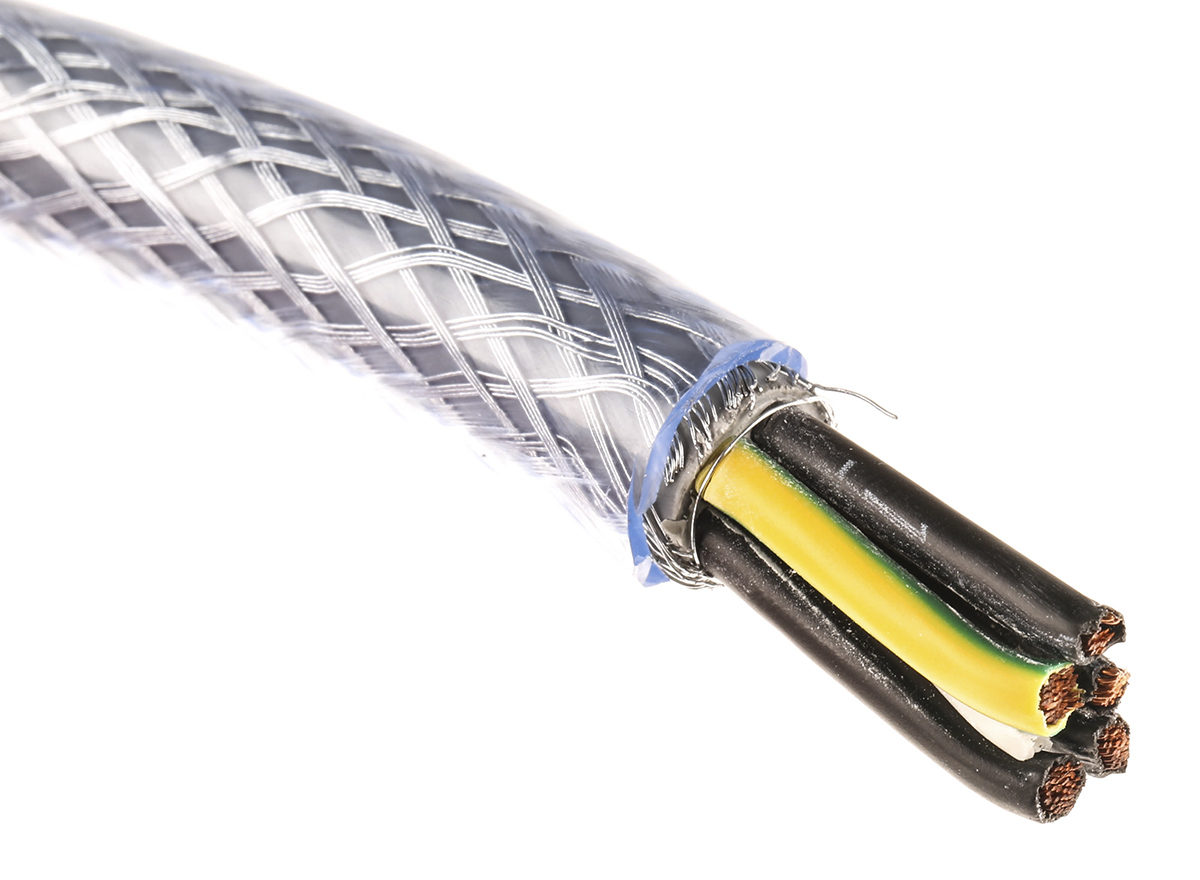

จำหน่าย RS PRO 827-4206 : The SY control cables from RS PRO are number coded and are reliable connecting cables which combine the characteristics of a flexible mains cable with that of a steel wire armoured type, ideal for use in conditions where mechanical stresses are prevalent and where free movement is required. และอุปกรณ์อื่นๆที่เกี่ยวข้องอีกมากมาย
คุณสมบัติ | รายละเอียด |
|---|---|
| Number of Cores | 5 |
| Cross Sectional Area | 4 mm² |
| Screened/Unscreened | Screened |
| Length | 50m |
| Control Cable Type | SY |
| Sheath Colour | Transparent |
| American Wire Gauge | 11 AWG |
| CPR Certification | Eca |
| Outer Diameter | 14.1mm |
| Sheath Material | PVC |
| Oil Resistant | Yes |
| Conductor Resistance | 4.95 Ω/km |
| Core Strands | 56/0.3 mm |
| Minimum Bend Radius | Fixed - 6 x D Occasional Flexing - 20 x D |
| Conductor Material | Copper |
| Voltage Rating | 300/500 V |
| Bedding Material | PVC |
| Earth Cable | Yes |
| Screen Type | Braid |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -40°C |
| Filler Material | Non-Wicking Filler |
| Current Rating | 34 A |
| Insulation Material | PVC |
